High Resolution Spectrometer Spectrum Analyzer Spectrophotometer TCD1304 315-1100nm SDK USB RS232

Name: High Resolution Spectrometer Spectrum Analyzer Spectrophotometer TCD1304 3151100nm SDK USB RS232
Brand: YIXIST
Price: 2 USD

China High Resolution Spectrometer Spectrum Analyzer Spectrophotometer TCD1304 315-1100nm SDK USB RS232 wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8102-01

Size : 140mm x 110mm x 46mm

Weight : 0.7 Kg, 0.7Kg

Wavelength Range : 315nm - 1100nm

Model : YSM-8102-01

Dimension : 140mm * 110mm * 46mm

Optical resolution : ~0.06nm-0.3nm

Fiber connector : SMA905

Detector : TOSHIBA TCD1304 Linear CCD

Pixel : 3648 pixels, size 14μm*200 μm

Signal to noise ratio : 300:1 at full signal

Dynamic range (Single) : 300:1

Price : $2,655.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

High Resolution Spectrometer Spectrum Analyzer Spectrophotometer TCD1304 315-1100nm SDK USB RS232

PRODUCT OVERVIEW

YSM-8102 series spectrometers, with high-resolution optical-mechanical platforms, are lighter but of better performance (up to 0.06nm optical resolution). Users can obtain different optical resolutions and wavelength responding ranges by selecting different gratings and slits.

Feature

Up to 0.06nm optical resolution.

Compact size and easy operation.

Crossed asymmetric C-T optical structure with interference filters eliminates secondary diffraction.

SMA905 fiber connector for easy connection to other devices.

Customizable wavelength range and optical resolution.

USB 2.0 for data transmission and power supply.

Support RS232/RS422 and multiple trigger modes.
Powerful software with automatic peak wavelength and bandwidth calculation functions.

Support OEM and in-depth customization.

Application

Laser’s central wavelength, FWHM, and stability measurement LED measurement LIBS applications Solar spectra analysis Fluorescence spectra analysis Color measurement

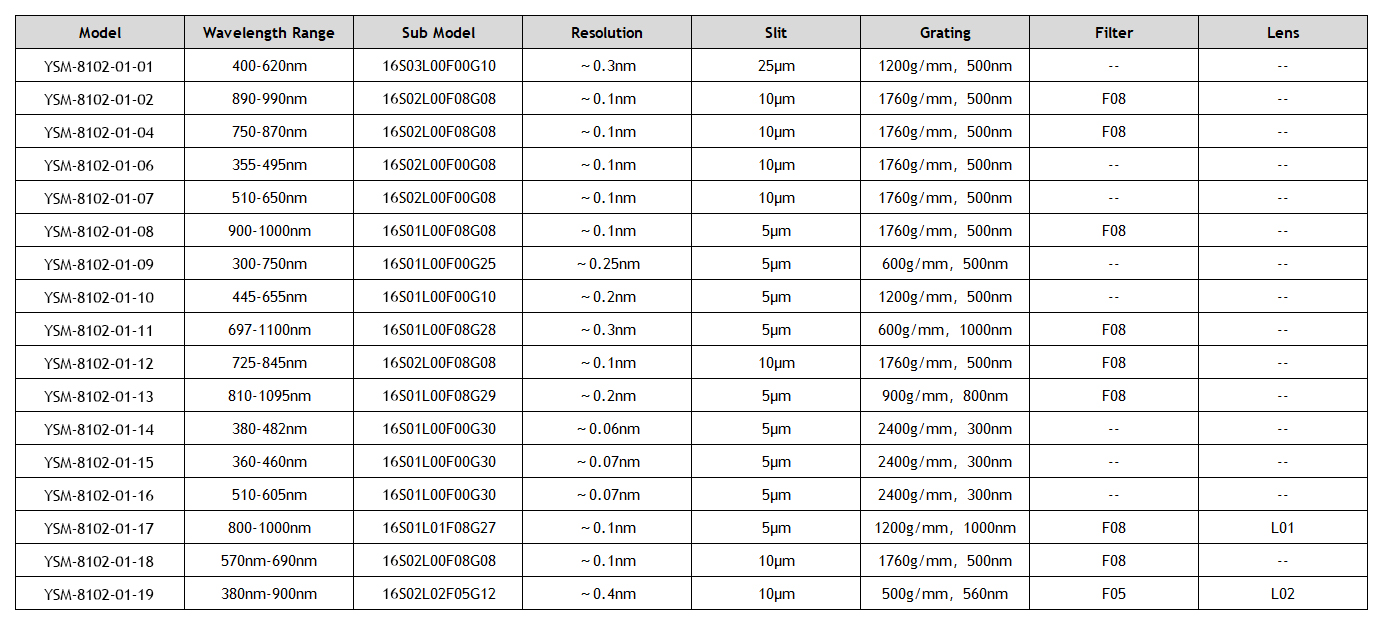

MODEL LIST

*Other wavelength ranges and resolutions can be customized.
*Cylinder lenses can be added to some models to increase the sensitivity.

PRODUCT SPECIFICATIONS

Model	YSM-8102-01
Dimension	140mm x 110mm x 46mm
Weight	0.7 Kg
Wavelength range	315nm - 1100nm
Optical resolution	~0.06nm-0.3nm
Fiber connector	SMA905
Detector	TOSHIBA TCD1304 Linear CCD
Pixel	3648 pixels, size 14μm×200 μm
Signal to noise ratio	300:1 at full signal
Linearity	>99%
Stray light	<0.1% (600nm, 435nm)
A/D resolution	16 bit
Integration time	4ms - 10s
Dynamic range	300:1
Trigger mode	Software, hardware, synchronization
Power consumption	250 mA, 5 VDC
Operating temperature	5℃ -35℃（25℃）
Computer interface	USB2.0（12Mbps） RS232（115200bps）
Operating system	Win XP, Win7,Win8, Win10
Power supply mode	USB or 5VDC

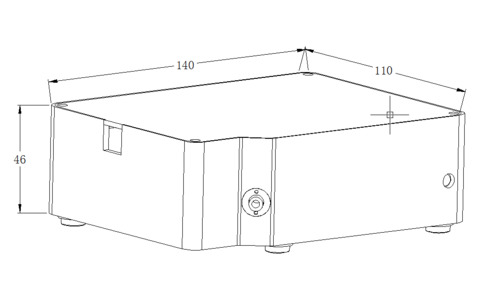

DIMENSION

RELATED ACCESSORIES

Fiber

Light Source

Sample Holder
