1024 Pixels Spectrometer with TE-Cooling HAM S7031 Fiber connector SMA905 YSM-8104-07

Name: 1024 Pixels Spectrometer with TECooling HAM S7031 Fiber connector SMA905 YSM810407
Brand: YIXIST
Price: 14 USD

China 1024 Pixels Spectrometer with TE-Cooling HAM S7031 Fiber connector SMA905 YSM-8104-07 wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8104-07

Size : 190mm*120mm*66mm

Wavelength Range : 200 nm-1100 nm

Model : YSM-8104-07

Dimension : 190mm*120mm*66mm

Optical resolution : ~1nm (Pre-configured 25um slit)

Fiber connector : SMA905

Detector : Hamamatsu area array back-thinned CCD sensor (S7031-1006s)

Pixel : Pixels 1024*58 Size 24um*24um

Signal to noise ratio : 1000:1

Dynamic range (Single) : 100000:1

Price : $14,749.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

1024 Pixels Spectrometer with TE-Cooling HAM S7031 Fiber connector SMA905 YSM-8104-07

PRODUCT OVERVIEW

YSM-8104 series high-performance spectrometers adopt Hamamatsu back-illuminated TE-cooling area array CCD (1024 and 2048-pixel versions). They have research-grade sensitivity. The optimized low-noise circuit, 18-bit A/D converter, and excellent CT optical structure vastly improve the S/N ratio, sensitivity, and thermal stability of the spectrometers, which are an ideal choice for Raman and fluorescence spectral measurement. YSM-8104-07 series spectrometers adopt Hamamatsu S7031-1006s series 1024 x 58-pixel TE-cooling CCD which is of excellent sensitivity.

Features

Hamamatsu back-illuminated TE-cooling area array CCD with 1000:1 S/N ratio. 18-bit A/D conversion with 100000:1 dynamic range (typical). Replaceable slit design (5µm, 10µm, 25µm, 50µm, 100µm, and 200µm). 1024 pixels and 2048 pixels versions. Up to 24µm x 24µm pixel size. Crossed asymmetric C-T optical structure and interference filters eliminate secondary diffraction. SMA905 fiber connector for easy connection. Customizable wavelength range and optical resolution. USB 2.0 data transmission and power supply; support RS232/RS422 and trigger modes. Powerful software with automatic peak wavelength and bandwidth calculation functions. Support OEM and in-depth customization.

Application

UV-VIS weak spectral measurement Raman Fluorescence One of the best Choices for research application

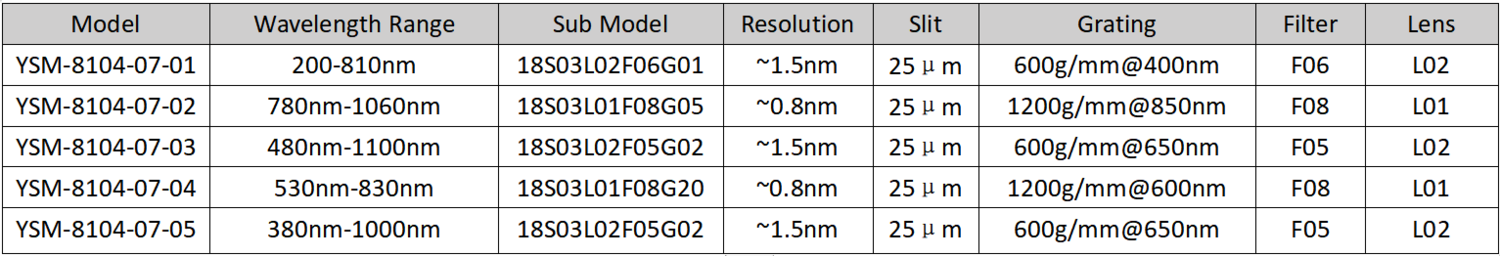

MODEL LIST

*Other wavelength ranges and resolutions can be customized.
*Cylinder lenses can be added to some models to increase the sensitivity.

PRODUCT SPECIFICATIONS

Model	YSM-8104-07
Detector	Hamamatsu area array back-thinned CCD sensor (S7031-1006s) 1024×58 Pixels Pixel Size 24µm×24µm Wavelength Response Range 200nm-1100nm
Size	190mm×120mm×66mm
Wavelength Range	200nm-950nm (Pre-configured)
Optical Resolution	~1nm (Pre-configured 25µm slit)
Signal to noise ratio	1000:1
A/D	18bit
Integration Time	8ms-3600s
Dynamic Range	100000:1
Trigger Mode	Software, hardware, synchronous
Fiber Connector	SMA905
Operating Temperature	5℃-35℃ (Recommended temperature 25℃)
Communication Interface	USB2.0, RS232
Operating System	Win XP, Win 7, Win 8, Win10
Power Supply	2A, 5VDC

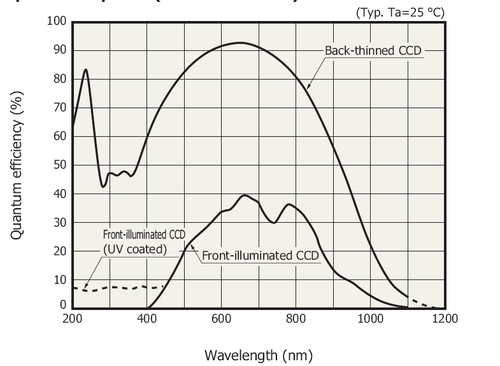

TYPICAL TESTING

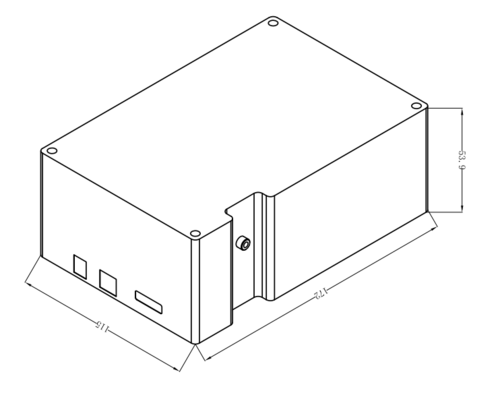

DIMENSION
