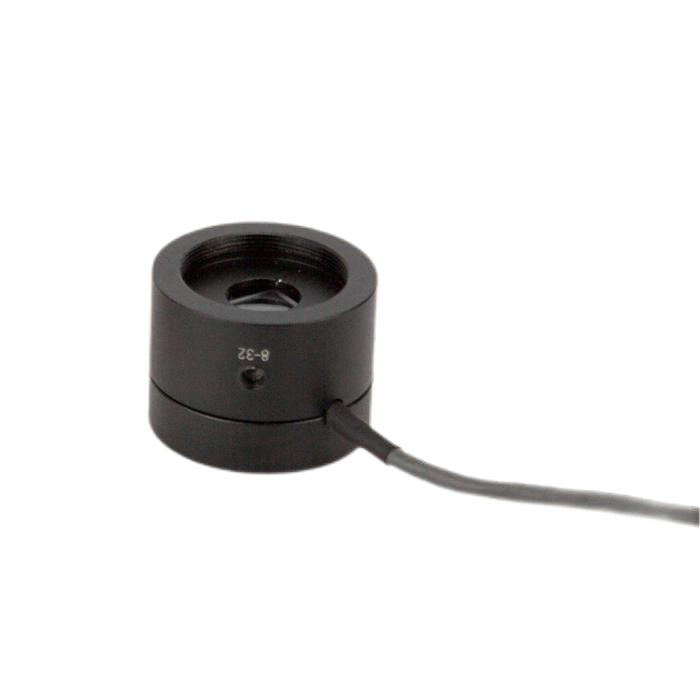

0.5Kg InGaAs Integrating Sphere Power Detector 800-1650nm 1uW 2W YIXIST YPM-8205-06-U

Name: 05Kg InGaAs Integrating Sphere Power Detector 8001650nm 1uW 2W YIXIST YPM820506U
Brand: YIXIST
Price: 2 USD

China 0.5Kg InGaAs Integrating Sphere Power Detector 800-1650nm 1uW 2W YIXIST YPM-8205-06-U wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YPM-8205-06-U

Size : 62 * 62 * 85mm

Weight : 0.5Kg, 0.5Kg

Wavelength Range : 800-1650nm, 800-1650nm

Model : YPM-8205-06-U

Dimension : 62 * 62 * 85mm

Data Collection Code : USB directly connect to computer

Measuring power range : 100nW-2W

Integrating Sphere Diameter : 2 in

Integrating sphere material : PTFE

Calibration uncertainty : ≤±5%

Linearity : ≤±0.5%

Price : $2,330.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

0.5Kg InGaAs Integrating Sphere Power Detector 800-1650nm 1uW 2W YIXIST YPM-8205-06-U

PRODUCT OVERVIEW

YPM-8205-06 integrating sphere power detector is an indium gallium arsenic integrating sphere detector covering 800nm to 1650nm band with power measurement range of 1uW - 2W. Two data acquisition methods are available: DB15 with meter display and USB direct connection to PC. The YPM-8205-06-U detector uses USB communication and can be directly connected to a PC for data acquisition without a meter. The PC needs to install the optical power measurement software, which can realize the functions of real-time data acquisition, data analysis and power monitoring. In addition, the USB type photoelectric detector can easily form a multi-channel power acquisition system, which can collect and display data from multiple detectors simultaneously via USB Hub.

Digital communication

The detector completes the data acquisition and processing, and uses digital communication with the optical power meter head to reduce external interference.

Measurement of free-space light or optical fiber

The integrating sphere detector allows users to measure free-space light, as well as our fiber optic splice adapters (FC or SMA) or bare fiber clips to measure the laser transmitted over the fiber.

Calibration data

The calibration data is stored electronically in the corresponding detector. The corresponding calibration report is provided to the customer together with the detector at the time of shipment. The report lists the wavelength response of the detector in relation to the spectrum at 10 nm intervals over the corresponding wavelength range. If you have an additional optional attenuator, the electronic storage and calibration report will also contain another set of corresponding calibration data. We offer a paid calibration service and recommend that the detector be calibrated once a year to ensure accurate measurements.

Customized service

We can provide customized services according to user requirements.

PRODUCT SPECIFICATIONS

Model	YPM-8205-06-U
Data acquisition method	USB direct connection to computer
Detector material	InGaAs Indium Gallium Arsenic
Wavelength range	800-1650nm
Measurement power range	100nW-2W
Maximum average power density	5W/cm^2
Integrating Sphere Diameter	2 inches
Integrating sphere material	PTFE
Integrating sphere inlet hole	12mm
Integrating sphere pre-measurement hole	SMA905 interface
Integrating sphere fixing hole	M4 / M6
Calibration uncertainty	≤±5%
Linearity	≤±0.5%
Uniformity	≤±2%
NEP(W/√HZ)	1.2E-13 W/√HZ
Response time	0.2us
Interface type	USB
Cable length	1.5m
Dimension	62 x 62 x 85mm
Weight	0.5Kg
Operating temperature,relative humidity	5℃ - 50℃ ，<70% RH

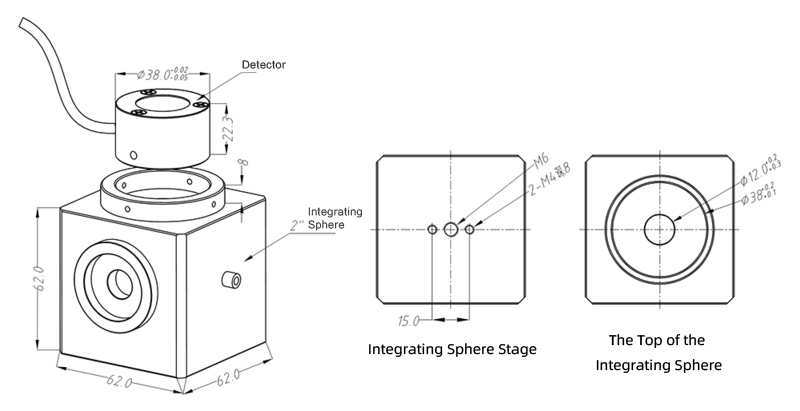

DIMENSION

RELATED ACCESSORIES

Power Meter

Integrating Sphere Power Detector

Thermopile Power Detector

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.

Currently we're working with hunderds of well known universities and research institutions in China and are actively involved in offline events as Education Seminars and Exhibitions.
