YIXIST YLS-8304-01 785nm Research-Grade Narrow Linewidth Multimode Laser

Name: YIXIST YLS830401 785nm ResearchGrade Narrow Linewidth Multimode Laser
Brand: YIXIST
Price: 2 USD

China YIXIST YLS-8304-01 785nm Research-Grade Narrow Linewidth Multimode Laser wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YLS-8304-01-785

Size : 150*102*200 mm

Weight : 1.2Kg, 1.2Kg

Wavelength Range : 785nm

Model : YLS-8304-01-785

Dimension : 150*102*200 mm

Center wavelength : 785nm

Power adjustment range : 15min

Modulation input : Analog signal 0 ~ 5V

Control interface : USB,BNC

Fiber optic interface : SMA905,FC/PC

Adapter fiber : Adapter fiber

Power Input : 100-240VAC,50/60Hz

Price : $2,655.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

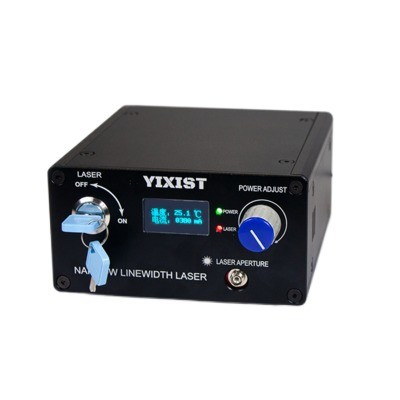

YIXIST YLS-8304-01 785nm Research-Grade Narrow Linewidth Multimode Laser

PRODUCT OVERVIEW

The YLS-8304-01 series of research-grade narrow linewidth multi-mode lasers provide six central wavelengths including 532nm, 785nm, 808nm, 830nm, 976nm and 1064nm. The minimum linewidth of this series of lasers can reach 0.08nm, and its narrow linewidth, stable power and stable wavelength output make it one of the coherent ideal light sources for scientific research, which is widely used in Raman spectroscopy, fluorescence detection, material analysis and other industries. The product is compact, easy to carry, and includes an upper computer control software, which can monitor the laser's usage status in real time.

Feature

Line width <0.1nm Frequency stability better than ±0.005nm@4H Temperature drift< 0.007 nm/°C, VBG lockout Side-Mode Suppression Ratio better than 40dB (60dB optional) Built-in TEC, power stability better than ±2% Including the upper computer control, emergency stop switch, short-circuit protection and other functions

Application

Raman spectrum, laser induced fluorescence, pump source etc.

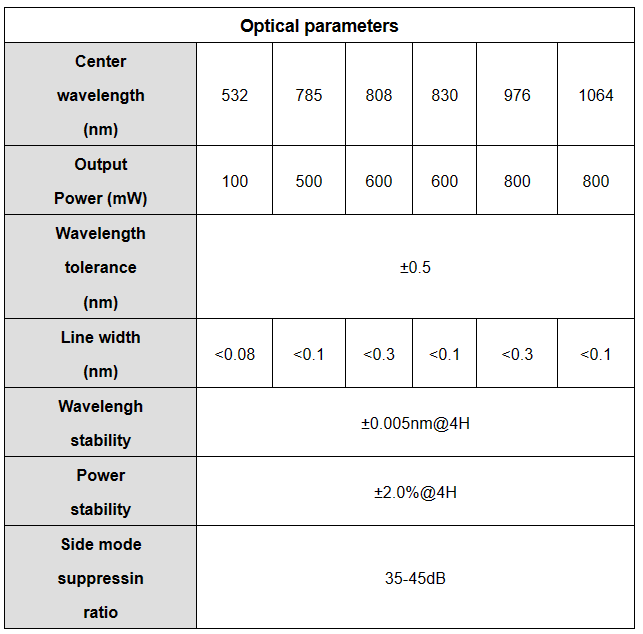

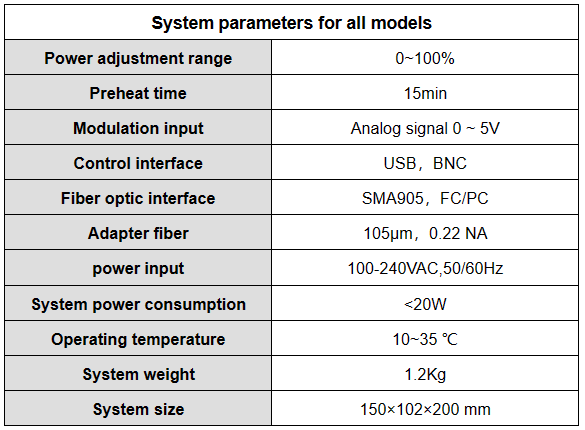

PRODUCT SPECIFICATIONS

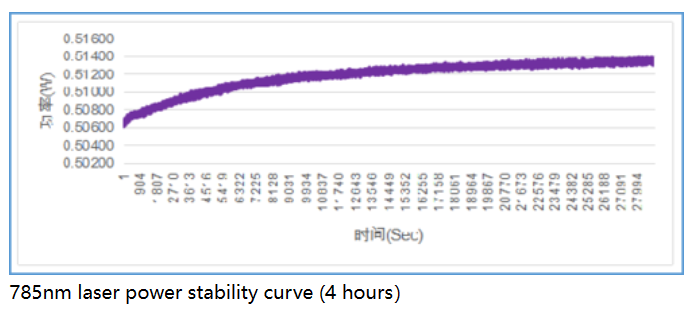

TYPICAL TESTING

RELATED ACCESSORIES

Raman Spectrometer

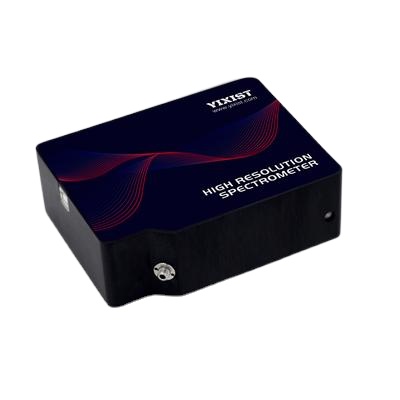

Spectrometer

Raman Probe
