200nm-1100nm Quartz Fiber Core Layer Double-Clad Fiber 600um L1m with SMA906 Connector

Name: 200nm1100nm Quartz Fiber Core Layer DoubleClad Fiber 600um L1m with SMA906 Connector
Brand: YIXIST
Price: 88.00 USD

China 200nm-1100nm Quartz Fiber Core Layer Double-Clad Fiber 600um L1m with SMA906 Connector wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : XOP-1102-0610

Wavelength Range : 200-1100nm

Model : XOP-1102-0610

Structure : 1-in to 1-out

Fiber core layer : quartz

Optical cortex : Fluorine-doped quartz

Coating : Acrylic

Outer sheath : Tefzel etc.

Core dameter : 200 / 400 / 600 / 800 / 1000 um

Length : 5 / 50 / 100 / 150 / 200 cm etc.

Connector : SMA905 / SMA906 / FC / TA and others

Price : $88.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

200nm-1100nm Quartz Fiber Core Layer Double-Clad Fiber 600um L1m with SMA906 Connector

PRODUCT OVERVIEW

Optical fiber is a versatile tool used for light conduction and transmission. It can be combined with a variety of testing equipment, including spectrometers, spectrophotometers, temperature probes, and cell phone testing devices, for spectral analysis. Optical fiber is also used in high-sensitivity measuring instruments for optical signals and as a medium for importing and exporting light for integrating spheres. The XOP-1102 series quartz fibers feature a concentric cylindrical structure, consisting of a quartz core and a fluorine-doped quartz cladding, and are coated with resin materials to enhance fiber strength. An additional sheath layer can be added to protect the fiber. These fibers can transmit light over a wide wavelength range and high power, making them ideal choices for photometry. Fibers are available with core diameters of 200-1100nm and 400-2200nm, and in 1-to-1, Y-type, 1-to-M type, and M-to-M type configurations. Customization options are also available for fiber diameter, core number, length, material, structure, and connector type.

Fiber optics are highly customizable and can be tailored to different transmission wavelengths, branching structures, core diameters, cladding, lengths, output forms, and connector types. The quartz double-clad fiber, for example, utilizes quartz as the optical core layer, fluorine-doped quartz as the optical skin layer, and a resin coating to ensure the strength of the fiber, with an optional outer jacket.

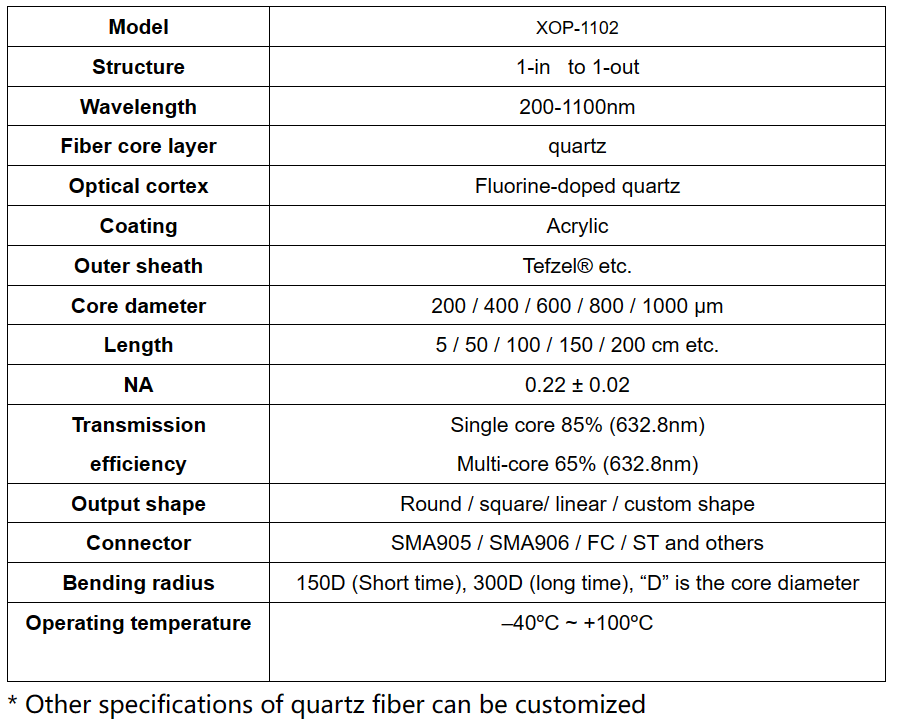

PRODUCT SPECIFICATIONS

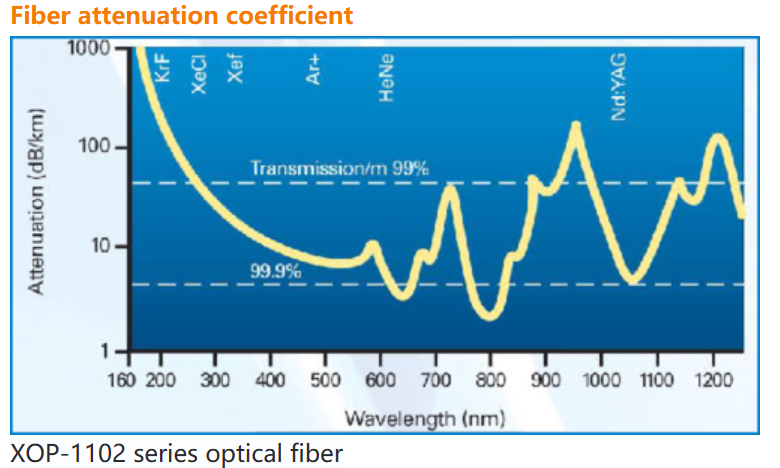

TYPICAL TESTING

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

^{YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.}

^{"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.}
