YIXIST XME-2201-03801 Integrating Sphere The Optimal Optics Energy Measurement Device

Name: YIXIST XME220103801 Integrating Sphere The Optimal Optics Energy Measurement Device
Brand: YIXIST
Price: 560.00 USD

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : XME-2201-03801

Wavelength Range : 250~2500nm

Model : XME-2201-03801

Ball diameter : 1.5inch

Dimensions : 56.5*56.5*55.5mm

Built-in light barrier : No

Detection port : 1 ports for fiber

Light entrance : Customizable

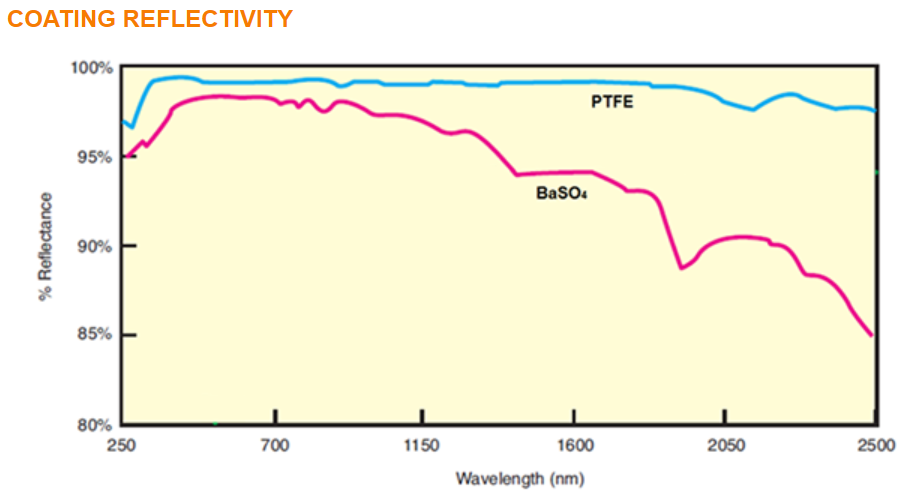

Coating material : PTFE, BaSO4, MgO optional

Price : $560.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

YIXIST XME-2201-03801 Integrating Sphere The Optimal Optics Energy Measurement Device

PRODUCT OVERVIEW

Integrating spheres are widely used light-gathering devices in optics. Their reflective and scattering properties enable irregular reflection, even distribution, and sufficient integration of light on the sphere, resulting in accurate energy measurement. The sphere walls feature perforations, including inlet, outlet, and sample ports. Various accessories, such as sample holders, lens holders, port plugs, and standard whiteboards, can also be added. The XME-2201 integrating sphere is suitable for measuring transmissivity and radiation.

Feature

Compact design with customizable specifications. Spectral range covers UV, VIS, NIR (250-2500nm). Customizable adaptors for various light sources.

Application

Lighting optics, fiber optics, laser technology, photochemistry, material analysis, and biotechnology. Material's transmission characteristics measurement. Light source's radiation characteristics measurement. Power and radiation curve measurement.

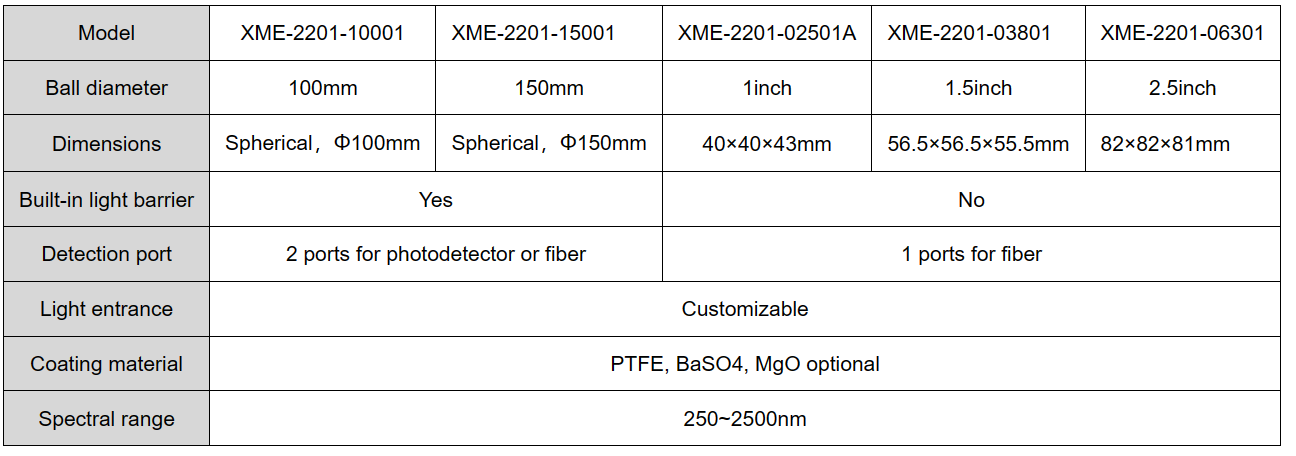

PRODUCT SPECIFICATIONS

TYPICAL TESTING

RELATED ACCESSORIES

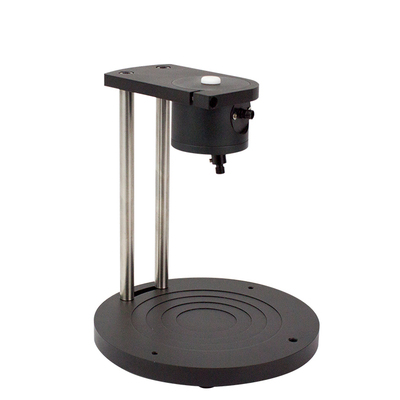

Integrating Sphere Stage

Light Source

Sample Holder
