Customizable Quartz Fiber XOP-1103-1005 400nm-2500nm 1mm L0.5m SMA905/TA/FC Connectors

Name: Customizable Quartz Fiber XOP11031005 400nm2500nm 1mm L05m SMA905TAFC Connectors
Brand: YIXIST
Price: 151.00 USD

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : XOP-1103-1005

Wavelength Range : 400nm-2500nm

Model : XOP-1103-1005

Structure : 1-in to 1-out

Fiber core layer : quartz

Optical cortex : Fluorine-doped quartz

Coating : Acrylic

Outer sheath : Tefzel etc.

Core dameter : 200 / 400 / 600 / 800 / 1000 um

Length : 5 / 50 / 100 / 150 / 200 cm etc.

Connector : SMA905 / SMA906 / FC / TA and others

Price : $151.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

Customizable Quartz Fiber XOP-1103-1005 400nm-2500nm 1mm L0.5m SMA905/TA/FC Connectors

PRODUCT OVERVIEW

Optical fiber is an ideal tool for light conduction and lighttransmission. It can be combined with various types of testing equipment suchas spectrometers, spectrophotometers, temperature probes and cell phone testingfor spectral analysis; it can also be used in high sensitivity measuringinstruments for optical signals and as a light import/export medium forintegrating spheres.

Fiber optics are highly customizable and can be tailored to different transmission wavelengths, branching structures, core diameters, cladding, lengths, output forms, and connector types. The quartz double-clad fiber, for example, utilizes quartz as the optical core layer, fluorine-doped quartz as the optical skin layer, and a resin coating to ensure the strength of the fiber, with an optional outer jacket.

PRODUCT SPECIFICATIONS

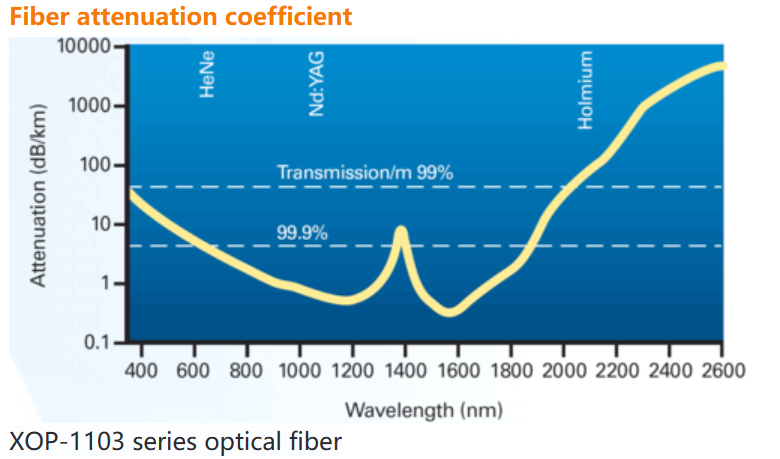

TYPICAL TESTING

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

^{YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.}

^{"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.}
