Acrylic Coating Y-type Quartz Double-Clad Fiber for 200nm-1100nm Wavelength Range

Name: Acrylic Coating Ytype Quartz DoubleClad Fiber for 200nm1100nm Wavelength Range
Brand: YIXIST
Price: 173.00 USD

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : XOP-1104-020410

Wavelength Range : 200nm-1100nm

Model : XOP-1104-020410

Structure : Y-type

Fiber core layer : quartz

Optical cortex : Fluorine-doped quartz

Coating : Acrylic

Outer sheath : Tefzel etc.

Core dameter : 200 / 400 / 600 / 800 / 1000 um

Length : 5 / 50 / 100 / 150 / 200 cm etc.

Connector : SMA905 / SMA906 / FC / TA and others

Price : $173.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

Acrylic Coating Y-type Quartz Double-Clad Fiber for 200nm-1100nm Wavelength Range

PRODUCT OVERVIEW

Optical fiber is an ideal tool for light conduction and light transmission. It can be combined with various types of testing equipment suchas spectrometers, spectrophotometers, temperature probes and cell phone testingfor spectral analysis; it can also be used in high sensitivity measuringinstruments for optical signals and as a light import/export medium forintegrating spheres. Fiber optics are very flexible and can be customized withdifferent transmission wavelengths, branching structures, core diameters,cladding, lengths, output forms and connector types. The quartz double-cladfiber uses quartz as the optical core layer, fluorine-doped quartz as theoptical skin layer, and a resin coating to ensure the strength of the fiber,and an outer jacket if required. The use of fluorine-doped quartz as theoptical skin layer allows the fiber to transmit a wider spectral range and totransmit high power optical energy, which is the main type of fiber we use forphotometric applications.

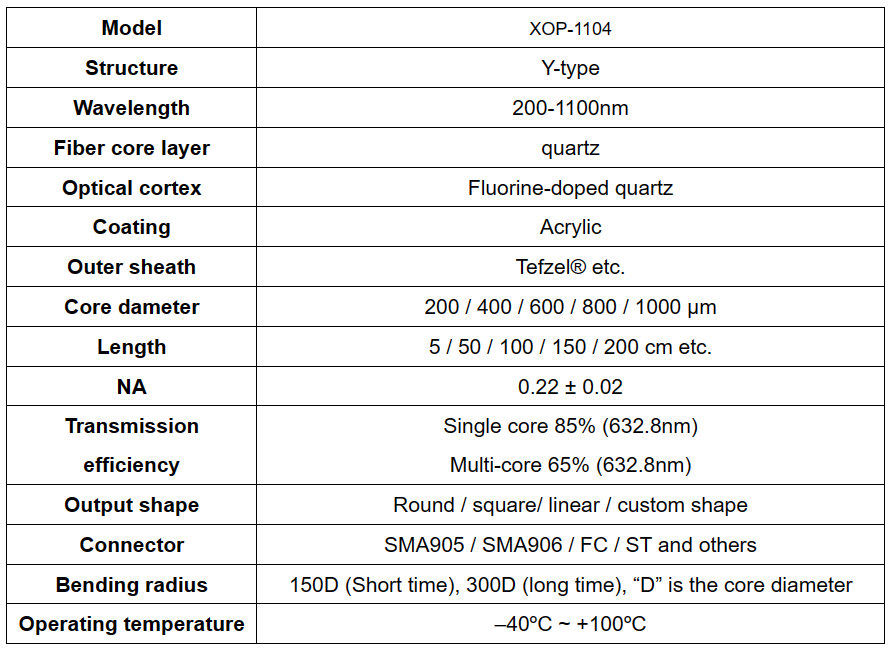

PRODUCT SPECIFICATIONS

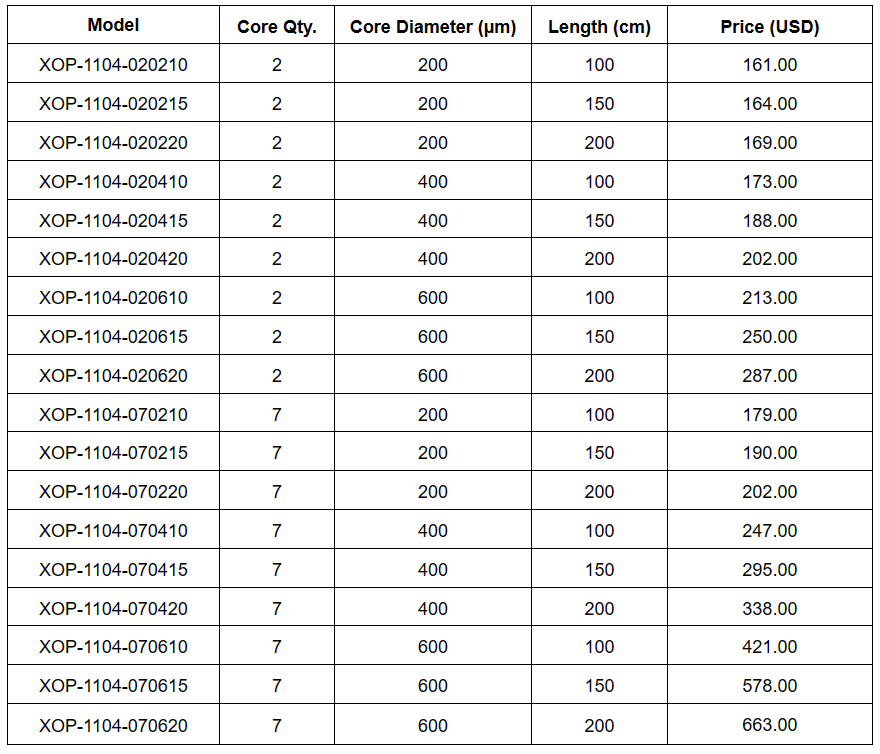

MODEL LIST

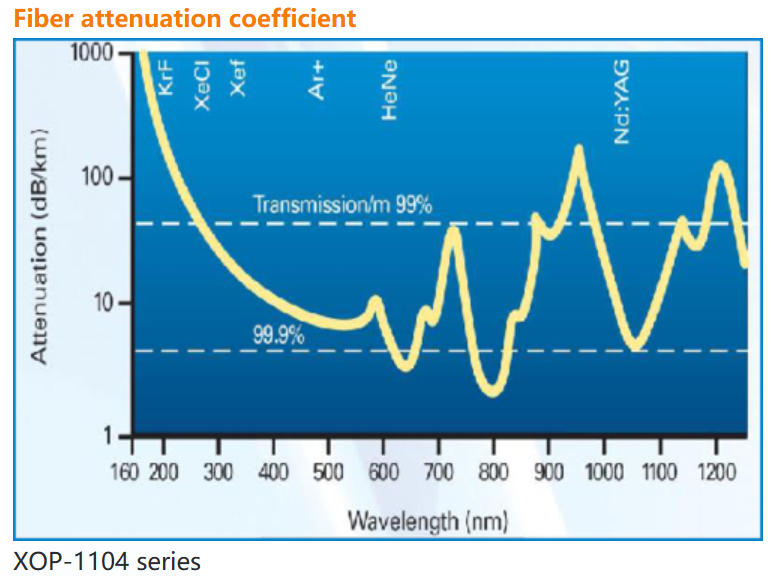

TYPICAL TESTING

COMPANY PROFILE

YIXI Smart Technology (YIXIST) Co., Ltd.

^{YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.}

^{"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.}
